Database Schema

The following is a entity-relationship diagram of the databases inside Impuls. This model is heavily based on GTFS.

impuls.DBConnection has convenience helpers to convert between the raw data coming from SQL and impuls.model dataclasses.

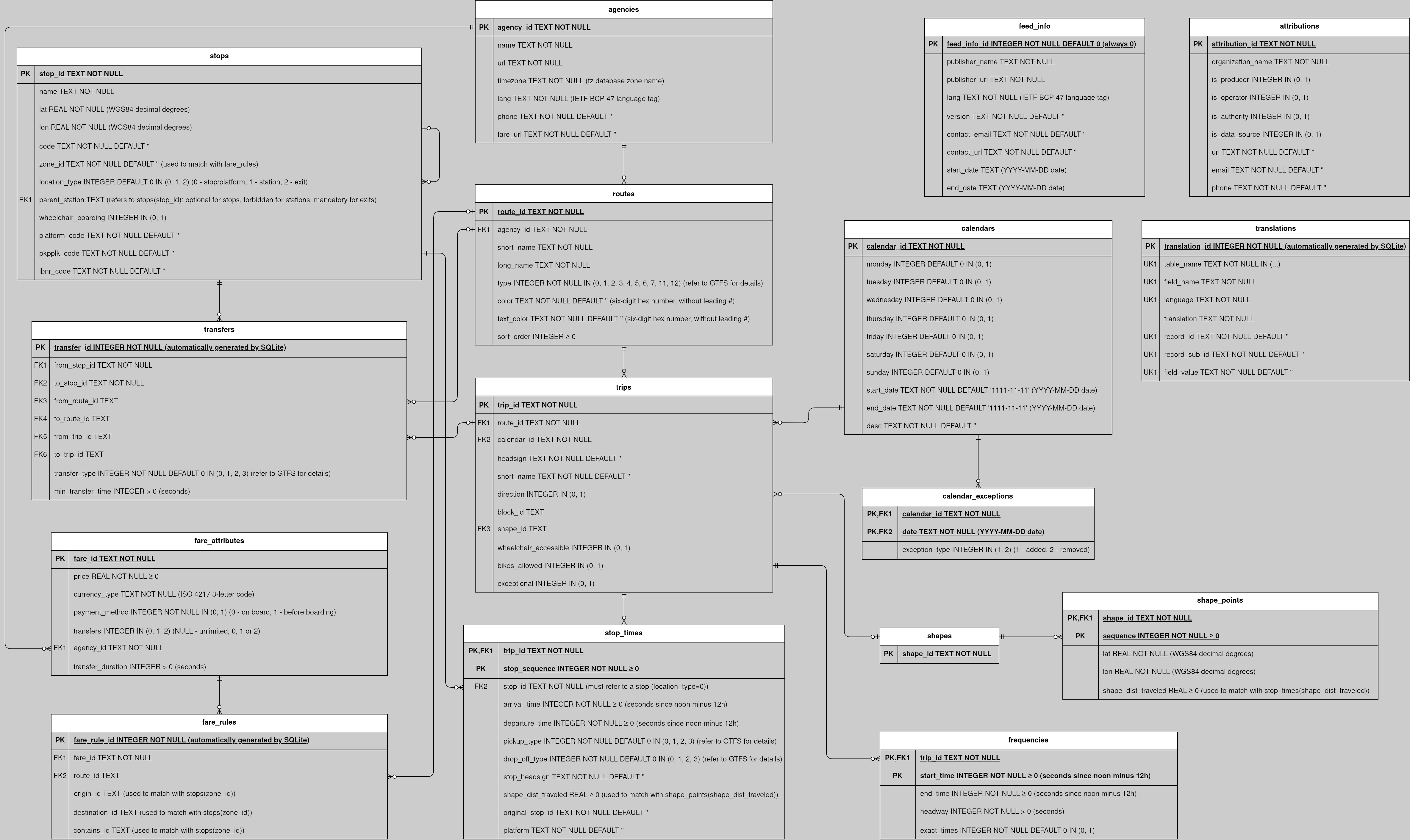

Impuls database ER diagram (click to zoom).
